Product Name:

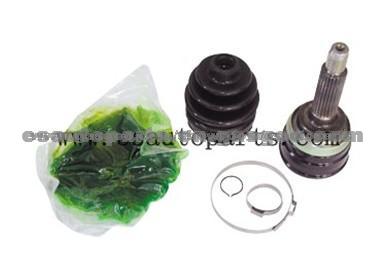

Daewoo-matiz/ Tico C V Joint Op-010/ 96273570
Application:
Daewoo-matiz ( Tico)
Product Description:
Product Name:DAEWOO-MATIZ/TICO C.V JOINT OP-010/96273570
OEM No/Model: OP-010/96273570
Application:DAEWOO-MATIZ/TICO
Size:Same as OEM
Delivery Time:45DAYS
Packing:Neutral packing or according to the customer request
Material
1.Fellymade of CF53 ball-basket special steel,featuring in good rigidity, high strength and abrasion resistant.
2.Inner and holder:adopted 20Cr,featuring in strong tension,bending strength,strong fatigue in contact, good toughness and wear.
3.Dustproof cover:adopted imported chloroprene rubber,featuring in oil-resistance,hear-resistance,high-lower-temperature-resistance(-40120),ozone-resistance,acid and basic resistance,and higher tension and air-tightness.
4.Lubricating oil:120g in quantity is to ensure the ball-basket can run normally. Its main ingredients are MOS2,featuring in strong anti-wear,anti-compression and high temperature performance,even if the lubricating grease resolves and goes bad,the MOS2 still can keep its lubricant property.
Technology
1.Finley Machining: ball railway six-part point precision control within 0.05mm,the roughness is above 0.8,which ensures the ball can run smoothly and non-jamming and permit working angle.
2.Bonderizing: antirust and corrosion resistance.
3.Warm forging forming: the blank is forged and formed below of 650,which reduces greatly the deformation resulted in higher temperature,ensuring the precision of the inner channel of ball.
4.Double-channel four-point contact: sound anti-impact,lower wear and extend the use life of ball.
